Stratux ADS-B Receiver Aviation Weather and Traffic – External GPS

(307 customer reviews)

$279.99 $254.99

SKU: TH-TIST-SEPC Category:
GTIN: 638908987248
MPN: 638908987248-CDE
Brand: Crew Dog Electronics

Description

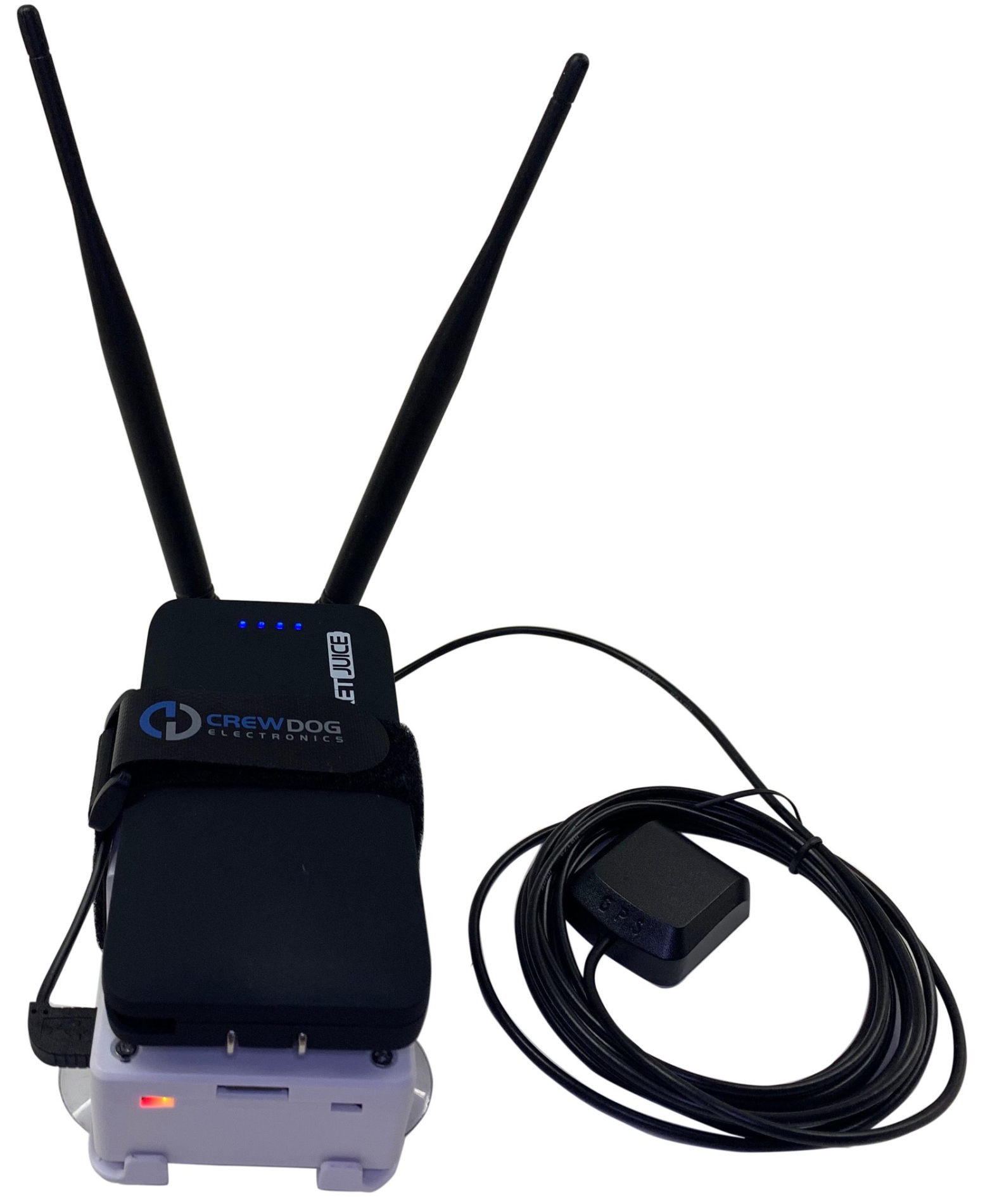

  • ASSEMBLED ADS-B IN UNIT: Stratux dual band ADS-B receiver includes removable external GPS puck, AHRS, fan controller, 6000mAh battery pack, suction mount, strap, SD card adapter, supports ForeFlight Synthetic Vision and other popular EFBs. It has a 30 day return policy and technical support backed by Crew Dog Electronics.

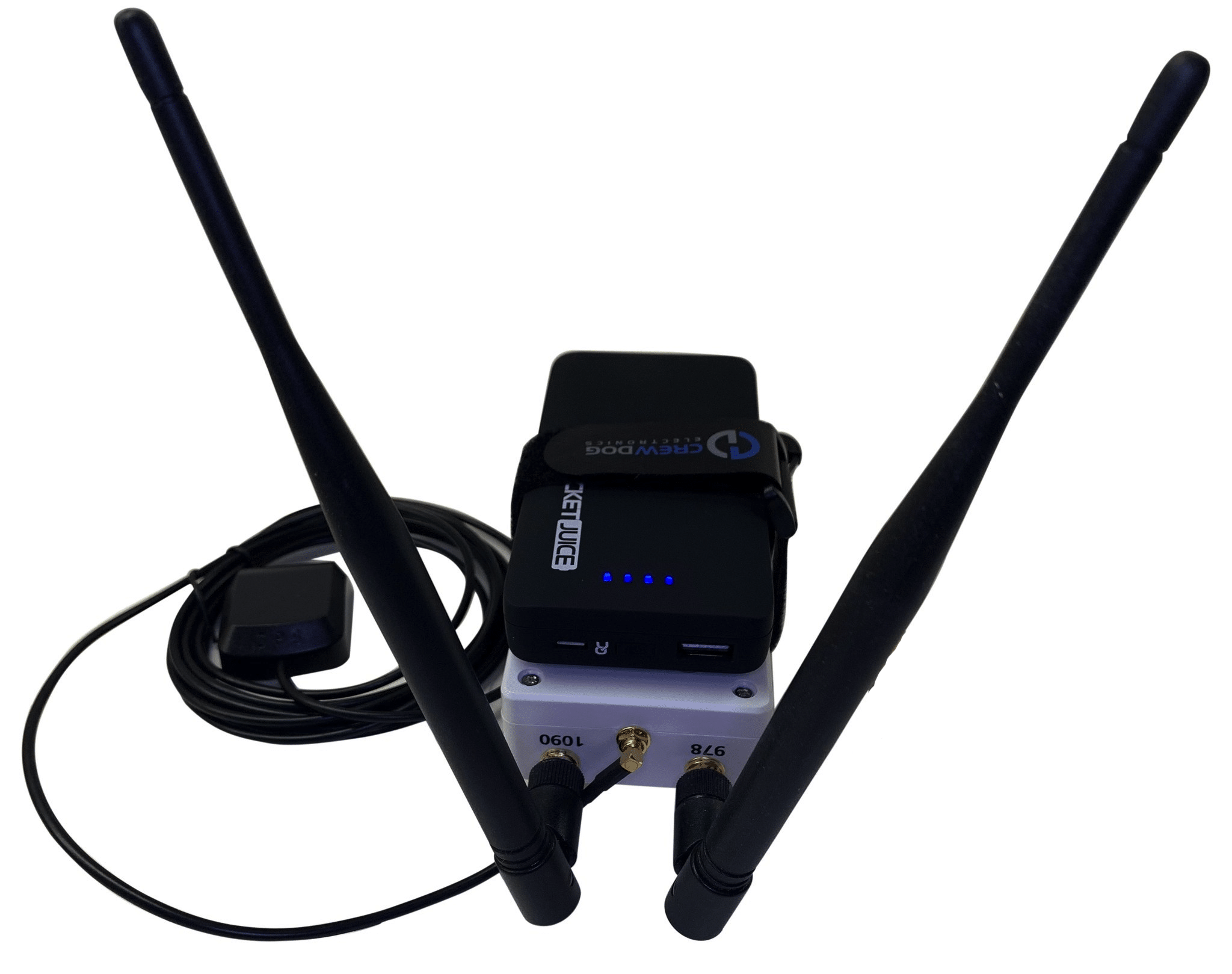

  • RELIABLE INFORMATION: High-gain dmurray14 antennas are optimized for 978 MHz and 1090 MHz frequencies allowing you to receive and display air-to-air traffic, data, and FIS-B weather including animated regional and CONUS NEXRAD, METARs, TAFs, AIR/SIGMETs, PIREPs, winds and temps aloft, TFRs, NOTAMs, and SUA information.

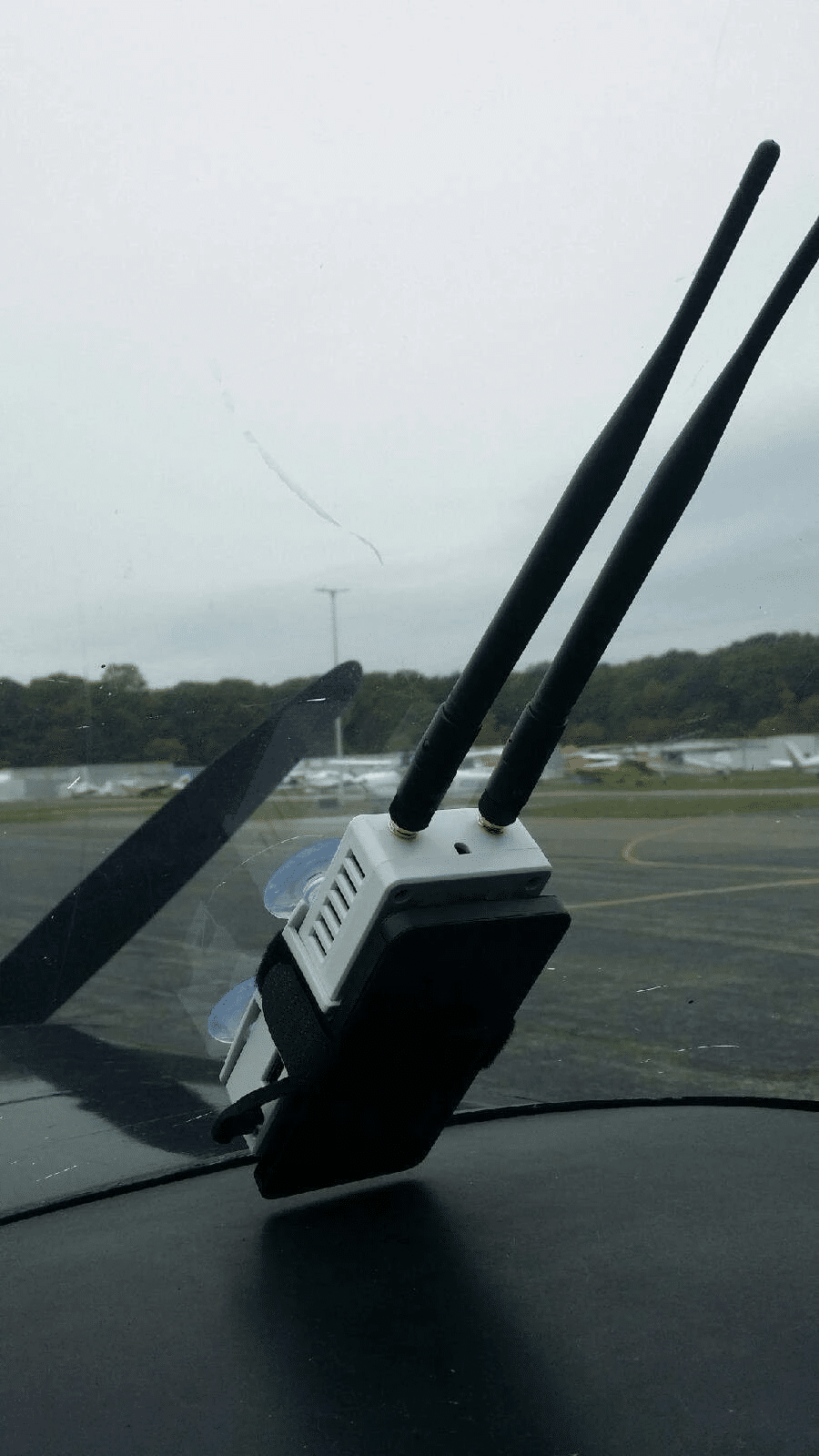

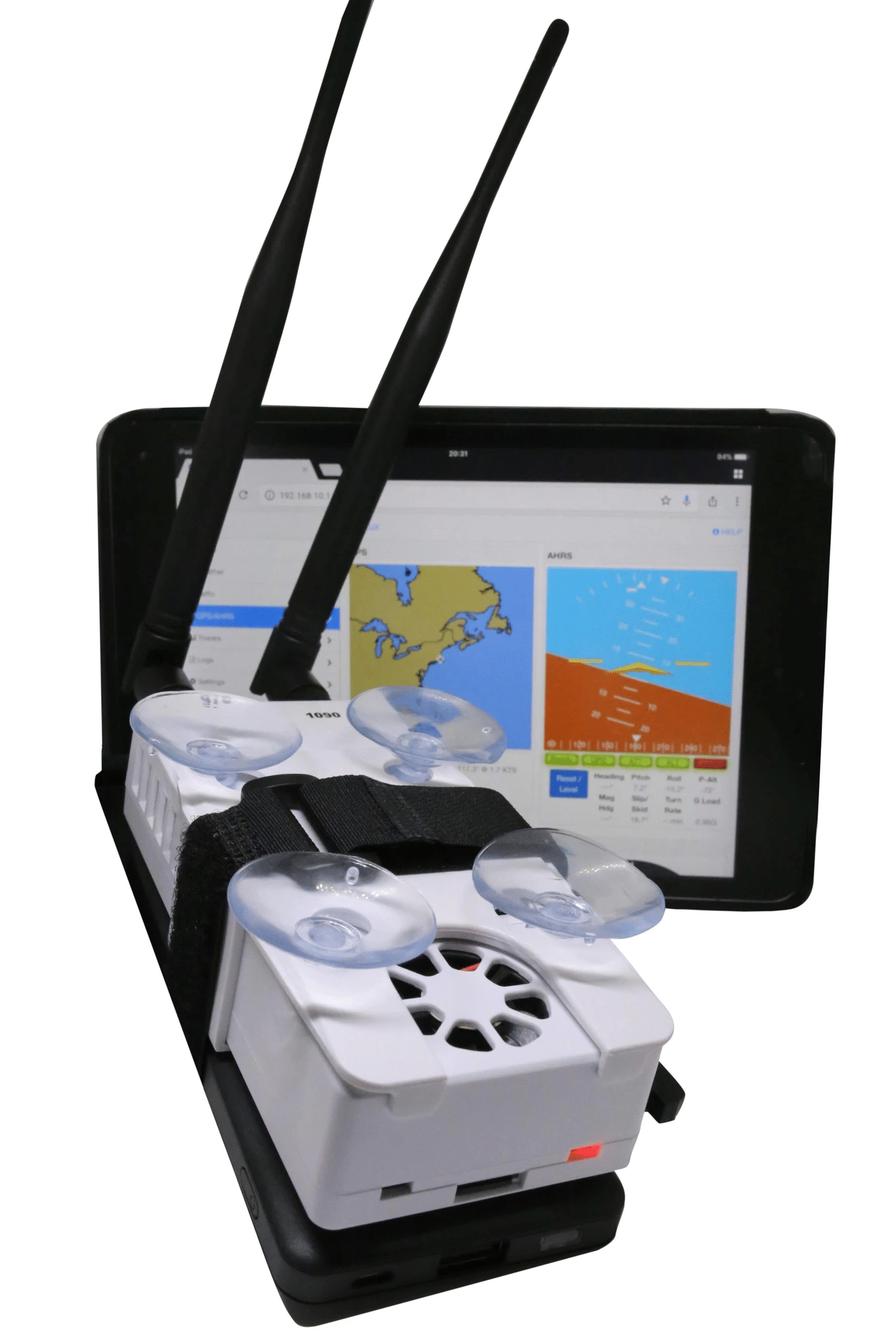

  • PORTABLE: Stratux is a highly portable receiver including a suction mount for window mounting. Provides ADS-B traffic and weather information and navigation GPS position using removable GPS puck with internal GPYes WAAS GPS receiver, supports multiple iPads, iPhones, or Android tablets connected via WiFi. Perfect for WiFi only iPads and tablets.
  • LATEST FIRMWARE: Latest Stratux software (v1.5b1) is already loaded on MicroSD card. Just plug in included rechargeable battery pack for 6 hours of flying time. Supports pass-through charging.
  • COMPATIBILITY: Stratus 3 functionality at Scout prices. Built using Raspberry Pi 3 board and parts direct from Stratux project founder. Supports ForeFlight, FlyQ EFB, Navigator, AvNav, WingX, Avare EFB, FltPlan Go, DroidEFB, AerovieReports, Avplan EFB, iFly GPS, DroidEFB, OzRunways EFB.

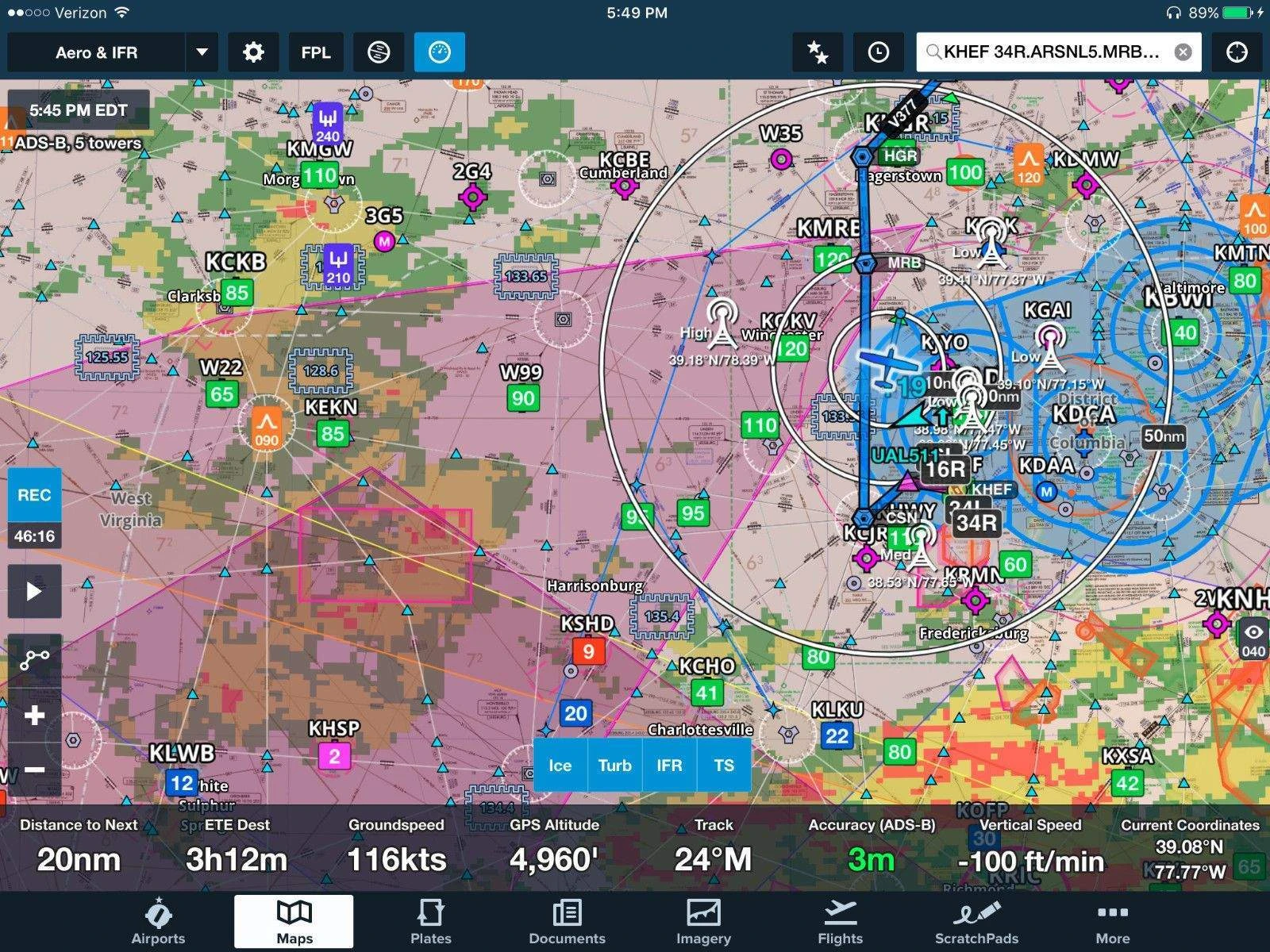

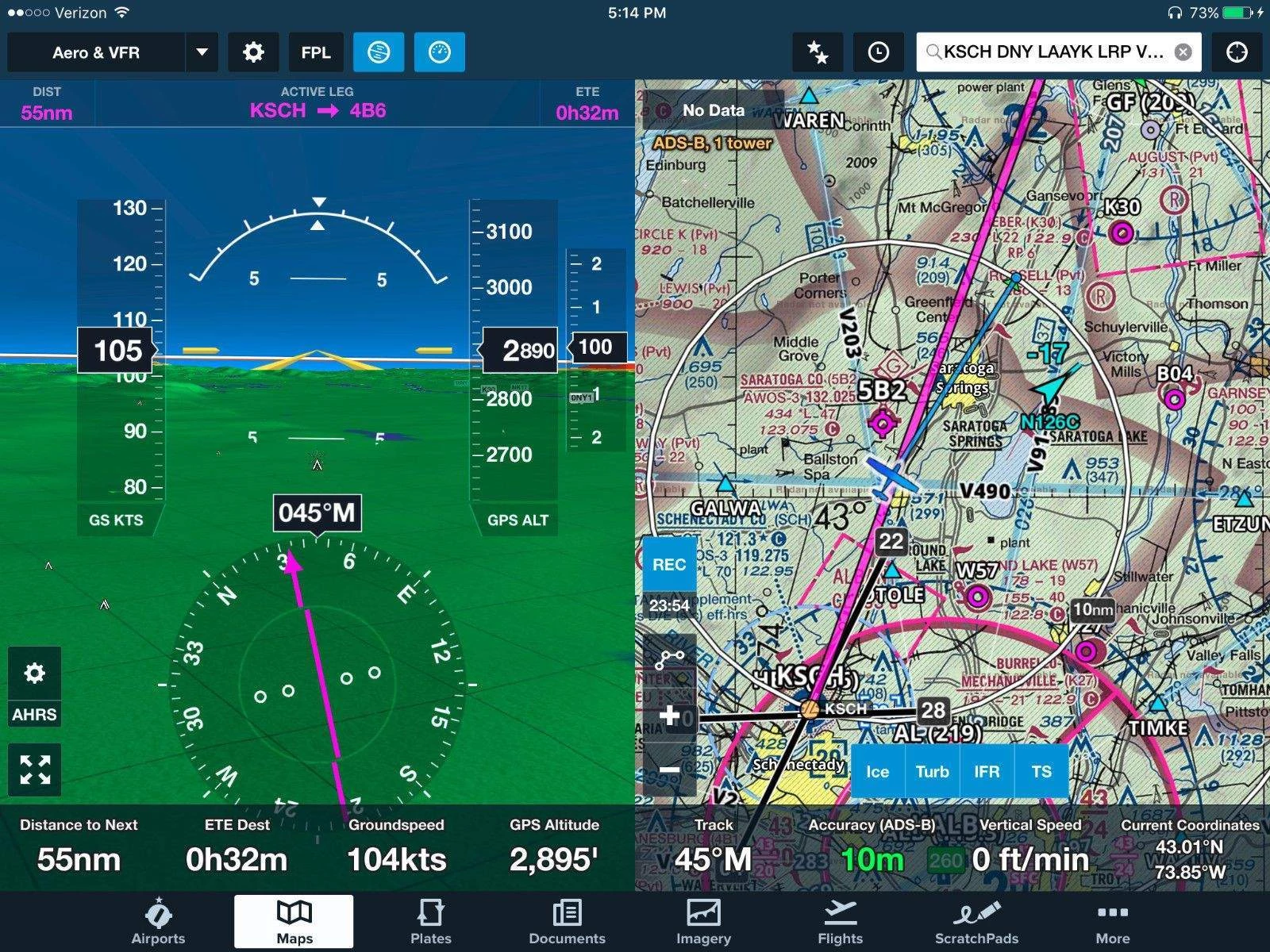

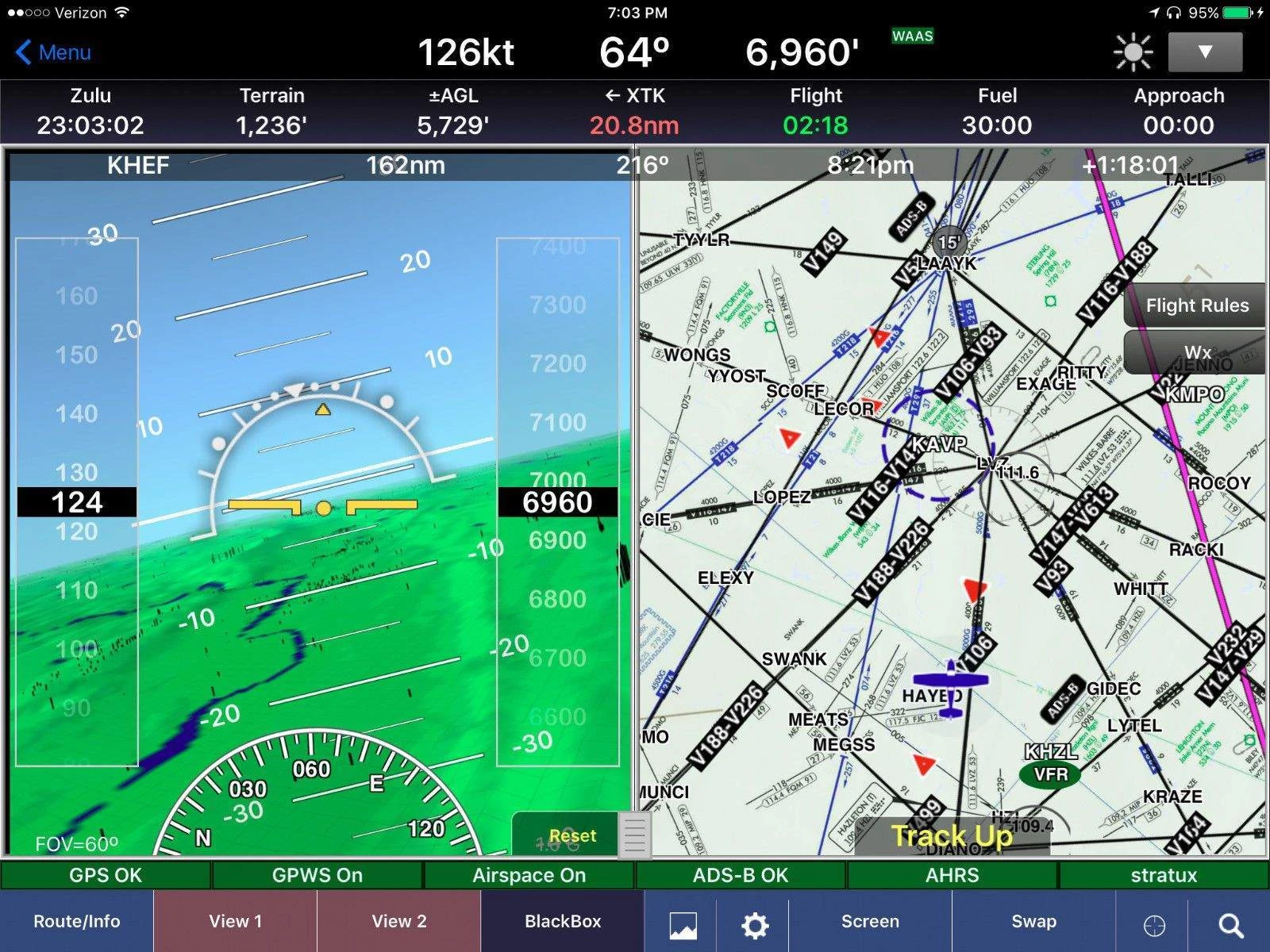

Stratux dual band ADS-B receiver transforms your tablet into the ultimate flight tool with Wide Area Augmentation (WAAS) GPS, subscription-free ADS-B weather and air-to-air traffic. WAAS GPS provides accurate information coordinates within +/- 2.5m. It includes embedded AHRS chip supporting ForeFlight Synthetic Vision and other EFBs. AHRS stands for Attitude and Heading Reference System. This provides true yaw, pitch, and roll information to your favorite EFB.

Introduced more than a decade ago by the FAA, ADS-B (Automatic Dependent Surveillance-Broadcast) provides weather and traffic information to all aircrafts equipped with an ADS-B receiver, such as the Stratux, subscription-free.

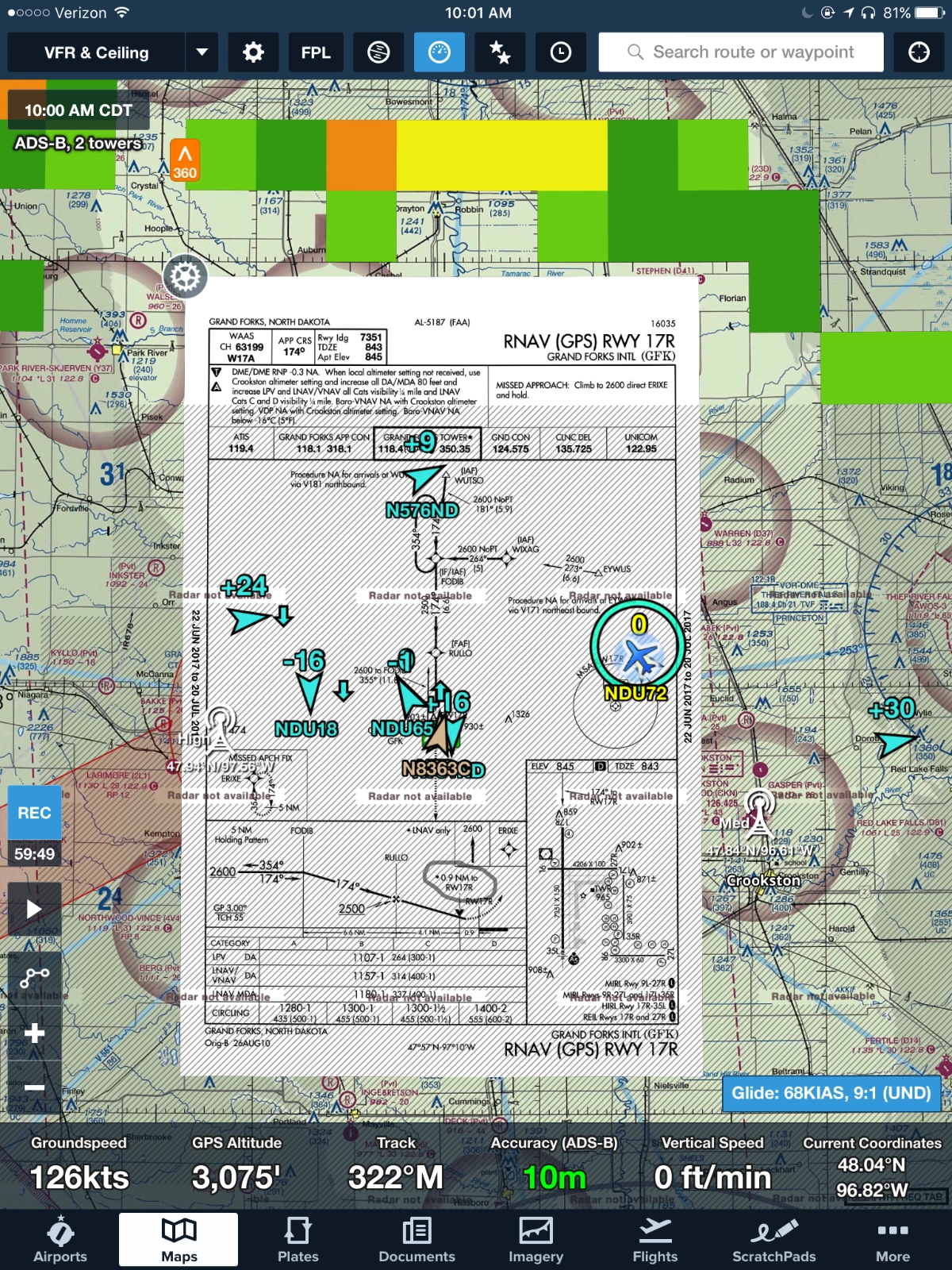

The Stratux provides the following ADS-B In services: Flight Information Service-Broadcast (FIS-B) – FIS-B provides regional and continental NEXRAD radar imagery from the National Weather Service, as well as NOTAMs, METARs, TAFs, PIREPs, winds aloft and other valuable in-flight weather services. FIS-B also includes information on temporary flight restrictions (TFR) and special use airspaces (SUA). It also receives traffic information on the 978 (ground to air) frequency for local traffic coverage and 1090 (air to air) for the widest possible coverage area, allowing you to receive and display air-to-air traffic, data, and FIS-B weather including animated regional and CONUS NEXRAD, METARs, TAFs, AIR/SIGMETs, PIREPs, winds and temps aloft, TFRs, NOTAMs, and SUA information.





Buy on Amazon
Home

Additional information

Weight1.5 kg
Dimensions12 × 4 × 2 cm

307 reviews for Stratux ADS-B Receiver Aviation Weather and Traffic – External GPS

  1. Nick

    I was originally going to order a Stratus as I had used my friend’s and really liked it, but then I learned of this device which could be had for much cheaper while providing the exact same functionality. Boy am I glad I didn’t spend the money on the Stratus.

    This device has been working just like the Stratus (but for hundreds of dollars cheaper), allowing me to see weather and traffic while flying my Sonex. Being a strictly VFR only aircraft, the ability to get METARs and radar have been paramount on long cross countries. The unit is of good quality and has worked perfectly on every flight. I highly recommend one to every GA pilot.

  2. P. Ford

    I’ve been using ForeFlight for years, but I didn’t want to pay the almost $1000 price tag associated with other ADS-B receivers. After giving this one a try I’m glad I didn’t! I get real time traffic and en-route weather that’s great for situational awareness. The battery pack lasts for a while and I can easily get several flights’ use out of it. Everything works as advertised.

  3. Dan

    This setup really delivers – you get all the value of the Stratux project, without the need to build it from scratch yourself. These units are tested and ready to go right out of the box with all of the best components already installed. Excellent performance for ADS-B weather, traffic, NOTAMs, etc. Why spend $1000 on a Stratus when you can get the same (and MORE) for so much less?

  4. kevin rondeau

    I can’t say enough good things about this item. I flew my training with a Stratus 2S but now that i fly alone back home in Hawaii i wanted one but i couldn’t see myself paying the high price. I got this one as I read it was very similar. I must say i haven’t found anything that the stratux doesn’t do that the Stratus does. I must say this is a must for Pilots who want GPS,Weather and ADS-B but don’t want to spend the high price of the Stratus 2S. After all i want to spend money flying not on equipment.

  5. Nicholas A Guthmiller

    Replacing my Stratus with this Stratux for a third of the price. Very happy with it! Does everything that I used with the stratus. Stratus will be sold soon!

  6. Luke Sullivan

    This product is immensely beneficial for various uses. Right now I use it in General Aviation for SA as a Flight Instructor. I plan to use it with military flying as well to supplement other aircraft systems for weather and traffic advisories. The instructions that come with the product are easy to follow and getting up and running is a quick process.

    I highly recommend to all pilots!

  7. Ray DaSilva

    Great ADSB receiver. I’m getting way more traffic information than I used to get with Dual XGPS. Also, very satisfied with the tech support from Crew Dog Electronics. They were great and answered my questions right way. Thanks guys.

  8. mamadou diallo

    Great Great Product, worth every penny. It takes about 4 min to get it unboxed and running. I am glad i did not get the Stratus and waited for a fully assembled Stratux. Thank you Crew Dog Electronics, Y’all Rock!
